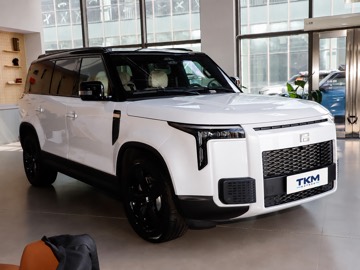

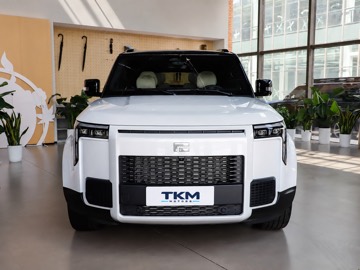

REPRESENTATIVE VEHICLE
ROX 01
2024 · Premium 6-seat Long-Range
Key Specifications
- Body Type
- SUV
- Seats
- 6 seats
- Powertrain
- Range-extended electric
- Engine / Battery
- 1.5T range extender, 58.4 kWh battery
- Drive Type
- Dual-motor four-wheel drive
- Transmission
- Single-speed fixed-ratio transmission
Request a Trade Quote
Trade pricing varies by Incoterm, sourcing location, destination, quantity, specification and current logistics costs. For an accurate EXW, FOB or CIF quotation, please contact our sales team.
Human-sales handoff only; not a Website quotation, stored quote, shopping or transaction flow.
Key Highlights
- Drive layout: Dual-motor four-wheel drive
- Tyre-pressure monitoring: Pressure display
- Apple CarPlay
- SUNROOF & GLASS: Sunroof Segmented fixed panoramic roof
- Off-road drive mode
- 360° surround-view camera: 360-degree surround-view camera
- Four-wheel-drive system: Electric four-wheel drive
Full Specifications for This Version
Confirmed manufacturer-source configuration for the represented version.
View All Specifications
Vehicle Overview 12 items
- Vehicle class: Mid-size to large SUV
- Powertrain type: Range-extended electric
- Emissions standard: China VI
- Maximum power (kW): 350
- Maximum torque (N m): 740
- Transmission: Single-speed electric transmission
- Body style / seating: 5-door, 6-seat SUV
- Length × width × height (mm): 5050 × 1980 × 1869
- Official 0–100 km/h time (s): 5.5
- Maximum speed (km/h): 190
- Kerb weight (kg): 2660
- Gross vehicle mass (kg): 3189
Dimensions & Body 12 items
- Length (mm): 5050
- Width (mm): 1980
- Height (mm): 1869
- Wheelbase (mm): 3010
- Front track (mm): 1692
- Rear track (mm): 1701
- Minimum turning radius (m): 5.98
- Body style: SUV
- Door opening type: Conventional hinged doors
- Doors: 5
- Seating capacity: 6
- Fuel-tank capacity (L): 70
Engine 29 items
- Engine code: B15F
- Engine displacement (mL): 1496
- Engine displacement (L): 1.5
- Induction type: Turbocharged
- Engine orientation: Transverse
- Cylinder arrangement: Inline
- Cylinders: 4
- Valves per cylinder: 4
- Valve train: DOHC
- Engine maximum net power (kW): 110
- Fuel grade: 95 RON petrol
- Fuel injection system: Direct injection
- Cylinder head material: Aluminium
- Cylinder block material: Aluminium
- ELECTRIC MOTOR & HYBRID SYSTEM: Motor type Permanent-magnet synchronous
- Electric motor total power (kW): 350
- Electric motor total output (PS): 476
- Electric motor total torque (N·m): 740
- Front motor maximum power (kW): 150
- Front motor maximum torque (N·m): 340
- Rear motor maximum power (kW): 200
- Rear motor maximum torque (N·m): 400
- Combined system power (kW): 350
- Combined system torque (N m): 740
- Traction motors: Dual motor
- Motor position: Front and rear
- HYBRID BATTERY: Hybrid battery type Ternary lithium-ion
- Battery-cell manufacturer: CATL
- Energy consumption (kWh/100 km): 23.6
Transmission 3 items
- Transmission description: Single-speed electric transmission
- Number of gears: 1
- Transmission type: Fixed-ratio transmission
Chassis & Steering 6 items
- Drive layout: Dual-motor four-wheel drive
- Four-wheel-drive system: Electric four-wheel drive
- Front suspension: Double-wishbone independent
- Rear suspension: Multi-link independent
- Power steering: Electric power assistance
- Body construction: Unibody
Wheels & Brakes 5 items
- Front brake type: Ventilated disc
- Rear brake type: Ventilated disc
- Parking brake: Electronic parking brake
- Front tyre size: 275/45 R21
- Rear tyre size: 275/45 R21
Passive Safety 3 items
- Driver front airbag
- Front passenger airbag
- Side curtain airbags
Active Safety 12 items
- Anti-lock braking system (ABS)
- Electronic brakeforce distribution
- Brake assist
- Traction control
- Electronic stability control
- Tyre-pressure monitoring: Pressure display
- ISOFIX child-seat anchors
- Lane-departure warning
- Autonomous emergency braking
- Driver-attention alertOptional
- Forward collision warning
- Built-in driving recorder
Drive & Control 67 items
- Sport drive mode
- Eco drive mode
- Normal / Comfort drive mode
- Off-road drive mode
- Auto Hold
- Hill-start assist control (HAC)
- Hill-descent control
- DRIVER-ASSIST HARDWARE: Front parking sensors
- Rear parking sensors
- 360° surround-view camera: 360-degree surround-view camera
- Millimetre-wave radars: 5
- DRIVER-ASSIST FEATURES: Full-speed adaptive cruise control
- Driver-assistance level: Level 2
- Satellite navigation
- Blind-spot monitoring
- Lane-keeping assist
- Lane centring
- Traffic-sign recognition
- Automatic parking
- Memory parkingOptional
- ACCESS & SECURITY: Aluminium-alloy wheels
- Roof rails
- Engine immobiliser
- Central locking
- Keyless start
- Keyless entry: All windows
- Remote start
- EXTERIOR LIGHTING: Low-beam headlamps LED
- High-beam headlamps: LED
- LED daytime running lamps
- Adaptive high/low beam
- Automatic headlamps
- Headlamp height adjustment
- Headlamp delay-off

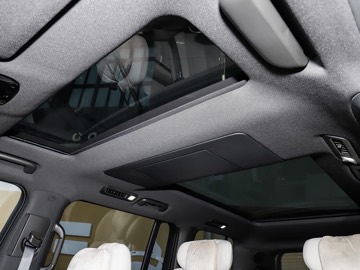

- SUNROOF & GLASS: Sunroof Segmented fixed panoramic roof
- Front power windows
- Rear power windows
- One-touch window operation: All windows
- Anti-pinch windows
- Driver's vanity mirror
- Front passenger vanity mirror
- Rear wiper
- Rain-sensing wipers
- EXTERIOR MIRRORS: Power-adjustable exterior mirrors
- Power-folding exterior mirrors
- Exterior-mirror memory
- Heated exterior mirrors
- Automatic exterior-mirror tilt in reverse
- Automatic mirror folding on lock
- Auto-dimming exterior mirrors

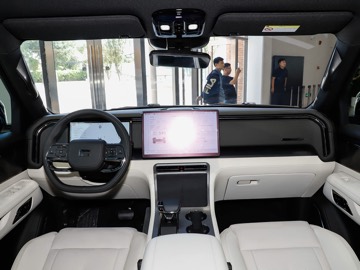

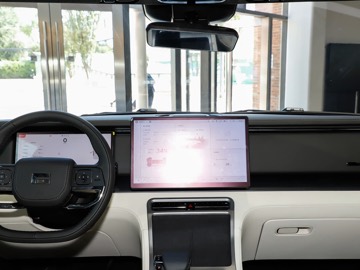

- CONNECTIVITY & INFOTAINMENT: Centre display size (in) 15.7 inches
- Bluetooth / hands-free calling
- Apple CarPlay
- Voice control
- Voice-assistant wake phrase: Hello, Shitou
- Wake-word-free voice control
- CONNECTIVITY & INFOTAINMENT — CONTINUED: Continuous voice recognition
- Visible-interface voice control
- Connected-car services
- Over-the-air (OTA) updates
- Wi-Fi hotspot

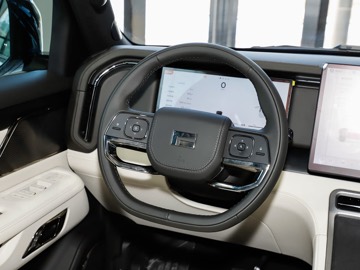

- STEERING & INSTRUMENTS: Steering wheel adjustment Manual tilt and telescopic
- Multifunction steering wheel
- Heated steering wheel
- Digital instrument display
- Auto-dimming interior rear-view mirror
- Digital rear-view mirror

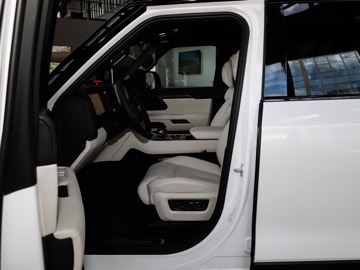

Seating 31 items
- Seat upholstery: Leather
- Driver's seat fore/aft adjustment
- Driver's seat backrest adjustment
- Driver's seat height adjustment
- Driver's seat thigh-support adjustment
- Driver's seat lumbar adjustment
- Front passenger seat fore/aft adjustment
- Front passenger seat backrest adjustment
- Front passenger seat lumbar adjustment
- Power-adjustable driver's seat
- Power-adjustable front passenger seat
- Heated front seats
- Ventilated front seats
- Front-seat massage
- Front-seat memory: Driver side
- Rear passenger seat-adjustment control
- Second-row seat heating
- Second-row seat ventilation
- Second-row seat massage

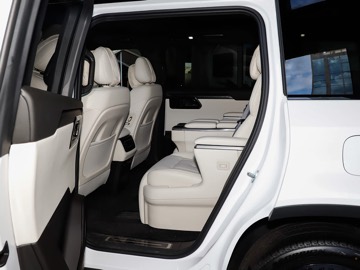

- Second-row individual seats
- Front centre armrest
- Rear centre armrest
- Rear cupholders
- AUDIO: Speakers 14 speakers
- Ambient lighting: 256 colours
- CLIMATE & AIR QUALITY: Climate-control type Automatic
- Independent rear climate control
- Rear air vents
- Cabin air purifier
- PM2.5 cabin filtration
- Negative-ion generator
THIS VERSION
Download This Vehicle Specification
Download the specification sheet for this represented version only. It does not include other versions or model-range comparisons.
Download This Version PDFFULL MODEL RANGE COMPARISON
Download Full Model Range Comparison
Compare eligible versions within the same model year and powertrain family, including manufacturer guide prices and key equipment differences.
The public specifications above describe this represented version. The PDF helps you compare the other eligible versions in the same model range.
Need the current password?
Request Password on WhatsAppManufacturer guide prices are shown for version comparison only. They are not TKM trade quotations and do not include export, freight, insurance, taxes or destination charges.
Password-protected comparison access for ROX 01; no document URL or password is present in this page.Contact TKM Motors
Vehicle availability and final specification remain subject to confirmation.
